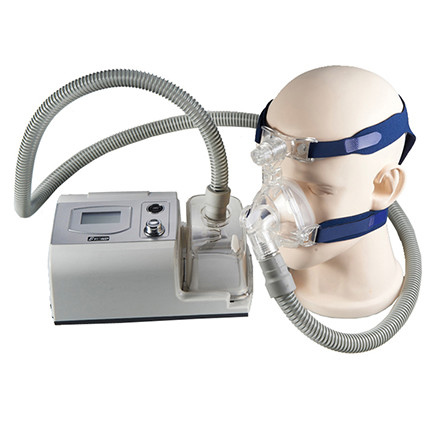

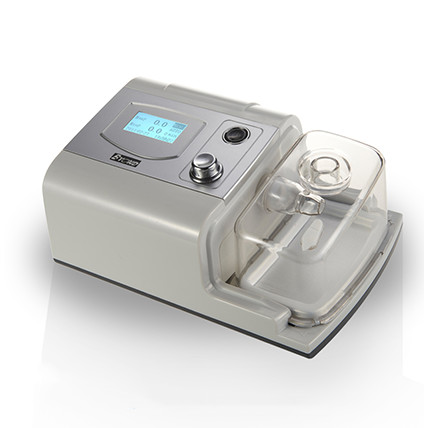

Our Dreamy series BY-Dreamy-AC08 APAP machine (Auto CPAP) is continuous positive airway pressure therapy to treat or alleviate related respiratory diseases. It covers the host, the breathing tube, filter sponge, power cable, power adapter and suitable for clinical treatment of sleep apnea-hypopnea syndrome (OSAHS).

Features of Auto Medical Ventilator
1. 128×64 LCD display with easy operation.
2. Interactive operation interface is available. Back-lighting function allow night operation.
3. Fashionable design with fine piano lacquer, convenient for wipe.
4. Respiratory waveform & quality waveform display can achieve real time monitoring of CPAP
5. Ultra silent design & Delay time step up design.
6. The portable machine adopts imported movement technology, capable of constant heating.
7. Autocpap machine is working to achieve human-computer synchronization.

Note of Auto Medical Ventilator
1. Not available in bullous lung disease, pneumothorax, severe lack of effective circulating blood volume with shock, coma or with disturbance of consciousness, or don’t cooperate or accept the mask treatment.
2. Not apply to children, or physical, sensory, intellectual can not be used safely and without the aid or user under guardianship.

Parameters of APAP Machine

Model	BY-Dreamy -AC08
Display	128×64 LCD
Mode	CPAP, Auto CPAP
Functions and features
Pressure	4-20CMH2O
Belex (1-3 level)	2-4cmH2O
Ramp	0-60min
Titration	Yes
Automatic Leakage Compensation	Yes
Automatic Altitude Adjustable	Yes
Automatic ON/OFF	Yes
Adjustable Constant Temperature Humidification System	Yes

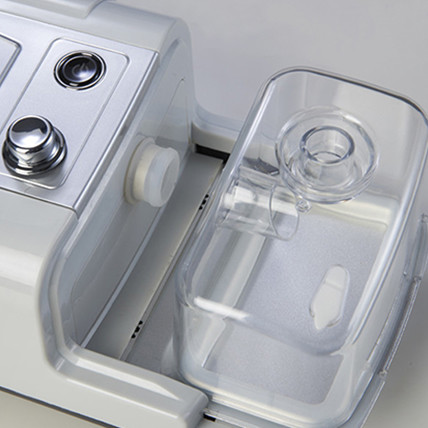

Replaceable Water Chamber	Yes
USB Download to PC	Yes
Sound Pressure Level(10cmH2O)	<30dBA
Input Volt.&Freq.	110-240Vac,50/60Hz
Net Weight & Size	1.8kg, 255×170×112mm(Host+Humidifier)

AUTO CPAP:
Apply Crowd:
1. Simple snoring.
2. Patients with mild to moderate OSAHS.

Taboo:
Repeated epistaxis
Coma
Hemodynamic instability
Pneumothorax
Pulmonary bulla
Cerebrospinal rhinorrhea

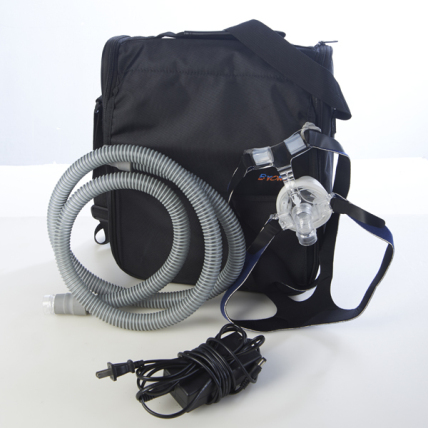

Product Accessories
Nasal Mask, Headgear,Tube, Filter, Power Adapter, User Manual & Travelling Bag
