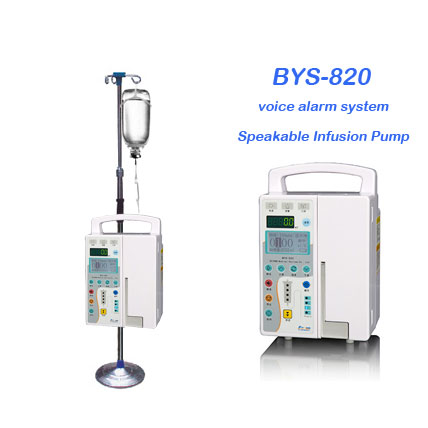

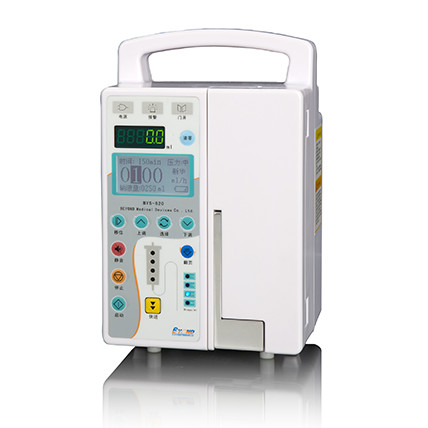

BYS-820

BYS-820
Description
BYS-820 series micro infusion pump is suitable for hospital medicine, surgery, pediatrics, obstetrics and gynecology, ICU, CCU ward, operating room and other clinical infusion therapy, but not for blood transfusions, and nutrition and transport of nutrients.
This infusion pump is an volumetric infusion pump. It drive mechanical transmission mechanism by controlling precision stepper motor through microprocessor, to drive peristaltic extruded sheet moving, and together with the pressure plate to accurately control the infusion rate, finally through a variety of sensors to control the infusion process, so it is also a precision smart infusion pumps.

Features of Micro Infusion Pump
1. Work mode: ml/h and drop/min are optional.
2. Built-in multi brand infusion, and support user custom, this debugging techniques ensure the use of all brands of infusion and transfusion accuracy.
3. High-precision drive system ensures the accuracy of the infusion and improves transfusion safety.
4. large LCD screen: The system uses high-definition display screen, achieve user-friendly operation.
5. The vein open function (KVO rate) can prevent back flow of blood.
6. Bolus can be quickly evacuated gas pipeline before starting the infusion, and increase the dose after starting.
7. The cumulative infusion: control the single amount of drug infusion, have the use of reminding for patients with prolonged infusion, convenient for medical staff's viewing.
8. Human voice alarm system: the real-time "alarm system” is for timely detection of troubleshooting, greatly reducing medical fault.
9. There are a variety of models, specifications, facilitate market operations.

Notes
The smart infusion pump is suitable for hospital medicine, surgery, pediatrics, obstetrics and gynecology, ICU, CCU ward, operating room and other clinical infusion therapy (but not for blood transfusions, and nutrition and transport of nutrients), especially for applications that require a long time, uniformly and precisely control the infusion rate clinical monitoring of the infusion process.

Specification of Micro Infusion Pump
Rate:
1ml/h ~ 1,200ml/h
Flow Rate Accuracy
Within ±5% (after correct calibration)
Mechanical precision
Within ±2%
Purge Rate
100ml/h ~ 1,000ml/h (100 ml/h step)
Infusion Volume
1ml ~ 9999ml
Total Infusion Volume
0.1ml ~ 9999.9ml
KVO rate
1ml/h ~ 5 ml/h (1ml/h step)
Occlusion
High: 800mmHg ±200mmHg (106.7kPa±26.7kPa
Medium: 500mmHg ±100mmHg(66.7kPa±13.3kPa
Low: 300mmHg ±100mmHg (40.7kPa±13.3kPa )
Unique audible and visible alarm
Human voice alarm for End of injection, occlusion, door open, bubbles in the tube, wrong setting, low battery, AC power pulled out etc.
Power Source
AC 100V ~ 240V, 50/60Hz. Internal rechargeable Li battery, capacity≥1,600mAh, 4 hours internal battery backup
Bubble detector
Ultrasonic wave detector; detection sensitivity ≥25μL
Fuse
F1AL/250V, 2 pc inside
Power Consumption
18VA
Operating Condition
Ambient temperature: +5℃ ~ +40℃;
Relative humidity: 20 ~ 90%
Atmospheric pressure: 86.0kpa ~ 106.0kpa
Transport & Storage Condition
Ambient temperature:-30℃ ~ +55℃
Relative humidity: ≤95%
Equipment Classification
Class II, internal power supply, Type CF
IP Classification
IPX4
Dimension
140mm (L) ×157mm(W) ×220mm(H)
Weight
1.8kg (net weight)
