Description

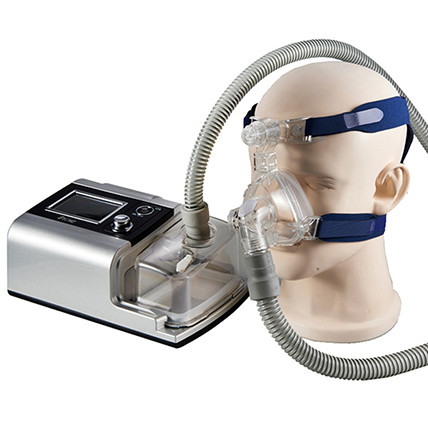

Our Dreamy series BY-Dreamy-AC09 sleep apnea machine (auto CPAP machinery), the product is continuous positive airway pressure therapy to treat or alleviate related respiratory diseases.
It is suitable for clinical treatment of sleep apnea-hypopnea syndrome (OSAHS). The device provides continuous positive airway pressure. In use, for the user apnea varying degrees, airway pressure set by corresponding professionals for treatment.

Features of Sleep Apnea Machine

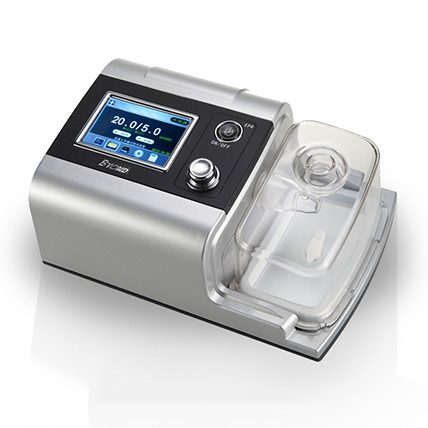

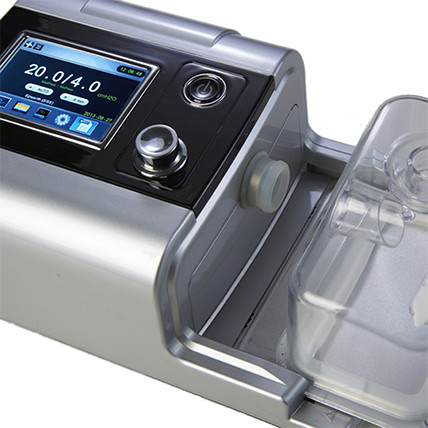

1. 3.5”TFT LCD display with easy operation.
2. Interactive operation interface is available. Back-lighting function allow night operation.
3. Fashionable design with fine piano lacquer, convenient for wipe.
4. Respiratory waveform & quality waveform display can achieve real time monitoring of CPAP
5. Ultra silent design & Delay time step up design.
6. The portable machine adopts imported movement technology, capable of constant heating.
7. Auto CPAP machine is working to achieve human-computer synchronization.
8. It composed of the host, the breathing tube, filter sponge, power cable, power adapter.

Note of Sleep Apnea Machine
1. Not available in bullous lung disease, pneumothorax, severe lack of effective circulating blood volume with shock, coma or with disturbance of consciousness, or don’t cooperate or accept the mask treatment.
2. Not apply to children, or physical, sensory, intellectual can not be used safely and without the aid or user under guardianship.

Parameters of Auto CPAP Machinery

Model	BY-Dreamy -AC09
Display	3.5’’ TFT LCD
Mode	CPAP, Auto CPAP
Functions and features
Pressure	4-20CMH2O
Belex(1-3 level)	2-4cmH2O
Ramp	0-60min
Titration	Yes
Automatic Leakage Compensation	Yes
Automatic Altitude Adjustable	Yes
Automatic ON/OFF	Yes
Adjustable Constant Temperature Humidification System	Yes
Replaceable Water Chamber	Yes
USB Download to PC	Yes
Sound Pressure Level(10cmH2O)	<30dBA
Input Volt.&Freq.	110-240Vac,50/60Hz
Net Weight & Size	1.8kg, 255×170×112mm(Host+Humidifier)

AUTO CPAP:
Apply Crowd:
1. Simple snoring.
2. Patients with mild to moderate OSAHS.

Taboo:
Repeated epistaxis
Coma
Hemodynamic instability
Pneumothorax
Pulmonary bulla
Cerebrospinal rhinorrhea

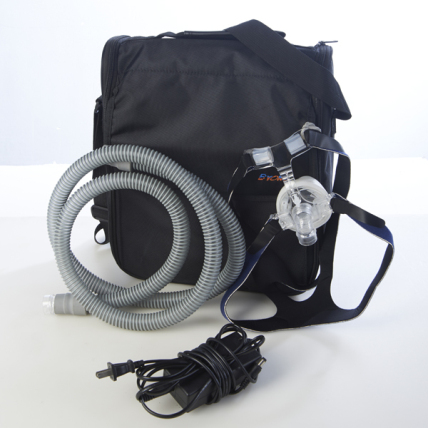

Product Accessories
Nasal Mask, Headgear,Tube, Filter, Power Adapter, User Manual & Travelling Bag
