BYZ-810TU

BYZ-810TU
Description

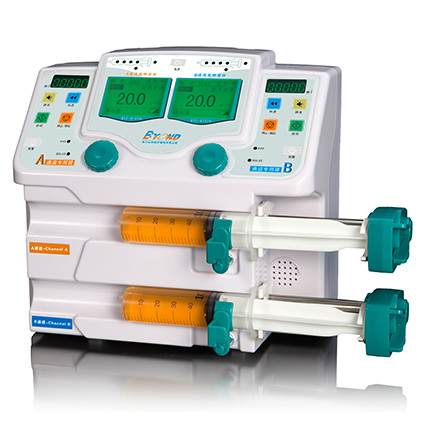

BYZ-810TU Dual syringe pump is one type injection pump, which works through the microprocessor to control precision stepper motor, using mechanical transmission device for generating translational thrust, finally pushing the syringe stem injection.

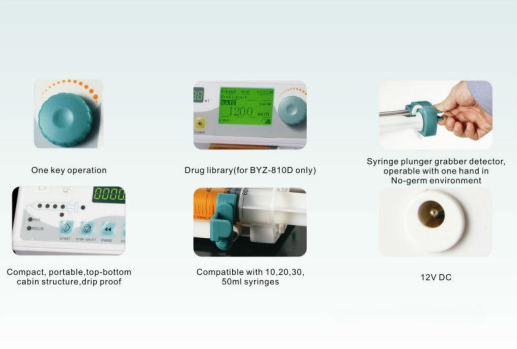

Advantages of Double Channel Pump
1. Work mode: Rate mode, Time volume mode, Dosage weight mode are optional.
A: Time Mode: By setting the time and dose, the system automatically calculates the speed of injection
B: Weight mode: By setting the amount of the drug, weight, liquid volume, the dose, the system automatically calculates the speed of injection
2. Built-in variety of syringe brands and supports automatic use, guaranteeing accuracy of all brands injection syringes.
3. Human voice alarm systems: A real-time voice alarm systems make troubleshooting more timely, which greatly reduce the occurrence of medical fault.
4. Precision drive system ensures the accuracy of injections and improves transfusion safety.
5. Large LCD screen: The system uses high-definition display screen, achieving user-friendly operation.
6. The vein open function (KVO rate) can prevent back flow of blood.
7. Bolus can be quickly evacuated gas pipeline before starting the infusion, and increase the dose after starting.
8. Built-clinical subjects storeroom system is easy for clinical use.
9. 2000 Article IV history records, easier to query.

Features of Dual Syringe Pump
1. Work mode: Rate mode, Time volume mode, Dosage weight mode are optional.
2. Human voice alarm systems: A real-time voice alarm systems make troubleshooting more timely, which greatly reduce the occurrence of medical fault.
3. With a powerful dose of drug reference data and more than ten automatic rate calculation formulas as well as the recommended dose, the machine has brought great convenience.
4. The infusion records storage function: it can query and record history infusion of about 2000 records, including medication records contain time, total fluid volume, total capacity and the name of the drug information.

Note of Double Channel Pump
1. The pump can be widely used in clinical subjects of conventional intravenous injection, anesthetic injection, inject anticoagulant and cancer chemotherapy patients.
2. It can apply to medical intensive care unit, neurology intensive care unit, etc.
3. This pump is not available for target controlled injection of narcotic drugs, insulin, does not apply to high-pressure injection, please choose the right products according to the specific needs of use.

Specification of Dual Syringe Pump
Rate
50/60ml Syringe: 0.1ml/h ~ 999.9ml/h (0.1ml/h step)
1,000ml/h ~ 1,500ml/h (1ml/h step)
30ml Syringe: 0.1ml/h ~ 900.0ml/h (0.1ml/h step)
20ml Syringe: 0.1ml/h ~ 600.0ml/h (0.1ml/h step)
10ml Syringe: 0.1ml/h ~ 300.0ml/h (0.1ml/h step)
Flow Rate Accuracy
Within ±3% (after correct calibration)
Mechanical precision
Within ±2%
Bolus Rate
50/60ml Syringe: 1,200ml/h
30 ml Syringe: 720ml/h
20 ml Syringe: 480ml/h
10 ml Syringe: 240ml/h
Purge Rate
50/60ml Syringe: 1,500ml/h
30ml Syringe: 900ml/h
20ml Syringe: 600ml/h
10ml Syringe: 300ml/h
Volume Limit
0.1ml ~ 9999.9ml(0.1ml step)
Total Injection
Volume
0.1ml ~ 9999.9ml (0.1ml step)
Occlusion
High: 800mmHg ±200mmHg (106.7kPa±26.7kPa
Medium: 50/600mmHg ±100mmHg (66.7kPa±13.3kPa
Low: 300mmHg ±100mmHg (40.7kPa±13.3kPa )
Alarms
Injection soon finish, end of injection,occlusion, improperly installation of syringe, wrong setting, low battery, syringe loose etc.
Power Source of Dual Syringe Pump
AC 100V ~ 240V, 50/60Hz; Internal rechargeable Li battery, capacity≥1,600mAh, 4 hours internal battery backup
KVO rate
1ml/h
Fuse
F1AL/250/60V, 2pcs inside
Power Consumption
30VA
IP Classification
IPX4
Equipment Classification
Class II, internal power supply, Type CF
Operating Condition
Ambient temperature: +5℃~ +40℃
Relative humidity
20 ~ 90%
Transport & Storage Condition
Ambient temperature:-30℃~ +55℃
Relative humidity
≤95%
Dimension
280mm (L) ×210mm(W) ×130mm(H)
Weight
3.6kg (net weight)
