Description

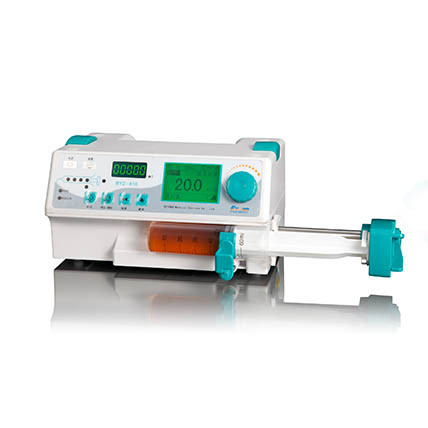

BYZ-810 Single channel syringe pump is widely used in clinical subjects of conventional intravenous injection, anesthetic injection, inject anticoagulant and cancer chemotherapy patients. It can apply to medical intensive care unit, neurology intensive care unit, etc.

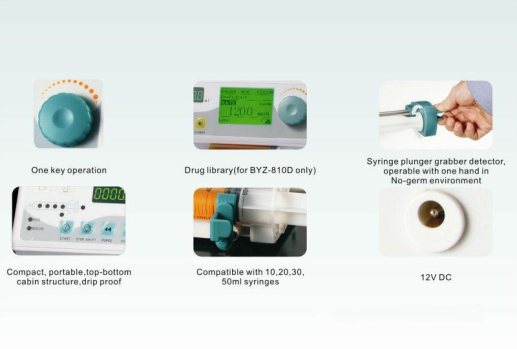

Features of Microcomputer Syringe Pump
1. Work mode: Rate mode, Time volume mode, Dosage weight mode are optional.
2. Human voice alarm systems: A real-time voice alarm systems make troubleshooting more timely, which greatly reduce the occurrence of medical fault.
3. Universal syringe: Built-in variety of syringe brands and supports automatic use, guaranteeing accuracy of all brands injection syringes.
4. Precision drive system ensures the accuracy of injections and improves transfusion safety.
5. Large LCD screen: The system uses high-definition display screen, achieving user-friendly operation.
6. The vein open function (KVO rate) can prevent back flow of blood.
7. Bolus can be quickly evacuated gas pipeline before starting the infusion, and increase the dose after starting.
8. Multi-drug combination: Single channel can be superimposed into a multi-channel free combination, can also be combined into a split-occupied 2-8 channel, resulting multi-drug combination forward.

Note of Microcomputer Syringe Pump
1. It can be widely used in clinical subjects of conventional intravenous injection, anesthetic injection, inject anticoagulant and cancer chemotherapy patients.
2. It can apply to medical intensive care unit, neurology intensive care unit, etc.
3. This pump is not available for target controlled injection of narcotic drugs, insulin, does not apply to high-pressure injection, please choose the right products according to the specific needs of use.

Specification of Single Channel Syringe Pump

Unique Human Voice Alarm system	The device triggered the human voice prompt and stop injection automatically when there is any malfunction, making the infusion process safer and more reliable.
Rate:	50/60ml Syringe: 0.1ml/h ~ 999.9ml/h (0.1ml/h step) 1,000ml/h ~ 1,500ml/h (1ml/h step) 30ml Syringe: 0.1ml/h ~ 900.0ml/h (0.1ml/h step) 20ml Syringe: 0.1ml/h ~ 600.0ml/h (0.1ml/h step) 10ml Syringe: 0.1ml/h ~ 300.0ml/h (0.1ml/h step)
Flow Rate Accuracy	Within ±3% (after correct calibration)
Mechanical precision	Within ±2%
Bolus Rate	50/60ml Syringe: 1,200ml/h 30 ml Syringe: 720ml/h 20 ml Syringe: 480ml/h 10 ml Syringe: 240ml/h
Purge Rate	50/60ml Syringe: 1,500ml/h 30ml Syringe: 900ml/h 20ml Syringe: 600ml/h 10ml Syringe: 300ml/h
Volume Limit	0.1ml ~ 9999.9ml (0.1ml step)
Total Injection Volume	0.1ml ~ 9999.9ml (0.1ml step)
Occlusion of Single Channel Syringe Pump	High: 800mmHg ±200mmHg (106.7kPa±26.7kPa) Medium: 50/600mmHg ±100mmHg (66.7kPa±13.3kPa) Low: 300mmHg ±100mmHg (40.7kPa±13.3kPa )
Alarms	Injection soon finish, end of injection,occlusion, improperly installation of syringe, wrong setting, low battery, syringe loose etc.
Power Source	AC 100V ~ 240V, 50/60Hz; Internal rechargeable Li battery, capacity≥1,600mAh, 4 hours internal battery backup
KVO rate	1ml/h
Fuse	F1AL/250/60V, 2pcs inside
Power Consumption	30VA
IP Classification	IPX4
Equipment Classification	Class II, internal power supply, Type CF
Operating Condition	Ambient temperature: +5℃ ~ +40℃
Relative humidity	20 ~ 90%
Transport & Storage Condition	Ambient temperature:-30℃ ~ +55℃
Relative humidity	≤95%
Dimension	280mm (L) ×210mm(W) ×130mm(H)
Weight	2.2kg (net weight)
