Description

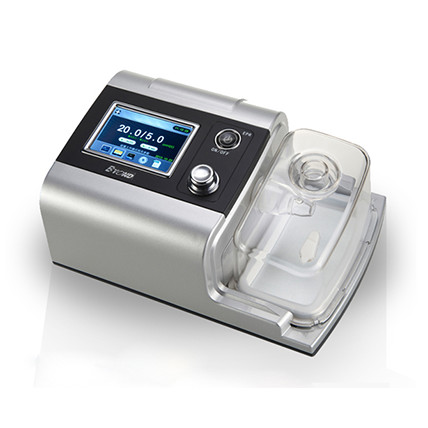

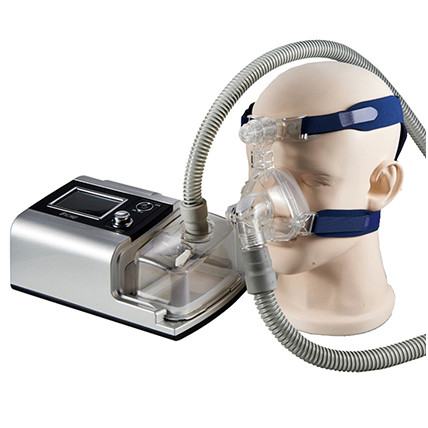

BY- Dreamy-C01 CPAP device adopts continuous positive airway pressure therapy to treat or alleviate related respiratory diseases. components: the host, the breathing tube, filter sponge, power cable, power adapter. It is suitable for clinical treatment of sleep apnea-hypopnea syndrome (OSAHS).

Features of Sleep Apnea Therapy Machine
1. 3.5”TFT LCD display with easy operation.
2. Interactive operation interface is available. Back-lighting function allow night operation.
3. Fashionable design with fine piano lacquer, convenient for wipe.
4. Respiratory waveform & quality waveform display can achieve real time monitoring of CPAP
5. Ultra silent design & Delay time step up design.
6. The portable machine adopts imported movement technology, capable of constant heating.
7. CPAP device is working to achieve human-computer synchronization.

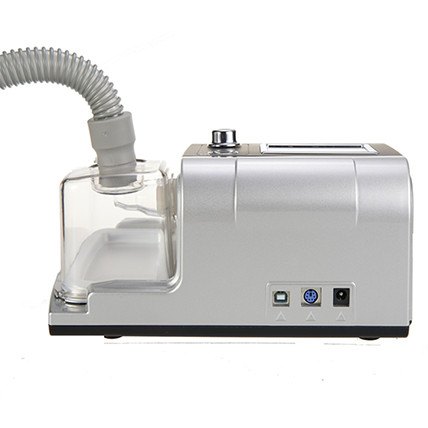

8. USB port for download the data

Notes of Sleep Apnea Therapy Machine
1. Not available in bullous lung disease, pneumothorax, severe lack of effective circulating blood volume with shock, coma or with disturbance of consciousness, or don’t cooperate or accept the mask treatment.
2. Not apply to children, or physical, sensory, intellectual can not be used safely and without the aid or user under guardianship.

Parameters of CPAP Device

Model	BY-Dreamy -C01
Display	3.5’’ TFT LCD
Mode	CPAP
Functions and features
Pressure	4-20CMH2O
Belex	2-4cmH2O
Ramp Duration	0-60min
Automatic Leakage Compensation	Yes
Automatic Altitude Adjustable	Yes
Automatic ON/OFF	Yes
Adjustable Constant Temperature Humidification System	Yes
Replaceable Water Chamber	Yes
USB Download to PC	Yes
Sound Pressure Level(10cmH2O)	<30dBA
Input Volt.&Freq.	110-240Vac, 50/60Hz
Net Weight & Size	1.8kg, 255×170×112mm(Host+Humidifier)

CPAP:
Apply Crowd:
1. AHI ≥ 15 times / hour of the patients.
2. AHI <15 times / hour, but daytime sleepiness and other symptoms were obvious

Taboo:
1. Repeated epistaxis
2. Coma
3. Hemodynamic instability
4. Pneumothorax
5. Pulmonary bulla
6. Cerebrospinal rhinorrhea

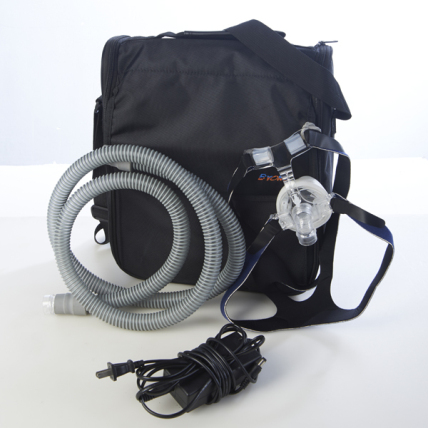

Product Accessories
Nasal Mask, Headgear,Tube, Filter, Power Adapter, User Manual & Travelling Bag
