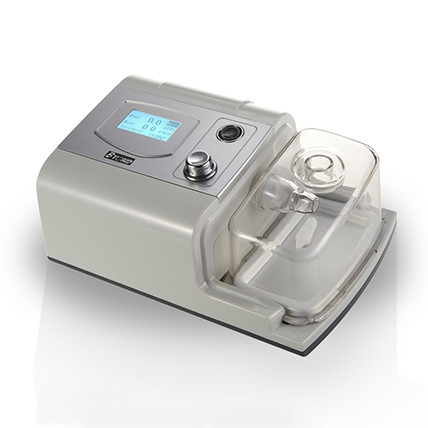

BY- Dreamy-B18

BY- Dreamy-B18
Description
BY- Dreamy-B18 is suitable for clinical and home treatment of sleep apnea-hypopnea syndrome (OSAHS) and respiratory failure diseases, which is typical model of BIPAP machinery. The snoring stopping machine for continuous positive airway pressure device can be set IPAP (inspiratory positive airway pressure) and EPAP (PEEP). In use, for the user apnea varying degrees, airway pressure set by corresponding professionals for treatment.

Advantages
1. 128×64 LCD display with easy operation.
2. Interactive operation interface is available. Back-lighting function allow night operation.
3. Fashionable design with fine piano lacquer, convenient for wipe.
4. Respiratory waveform & quality waveform display can achieve real time monitoring of CPAP
5. Ultra silent design & Delay time step up design.
6. The portable machine adopts imported movement technology, capable of constant heating.
7. BIPAP machinery is working to achieve human-computer synchronization.

Note of Snoring Stopping Machine
1. Not available in bullous lung disease, pneumothorax, severe lack of effective circulating blood volume with shock, coma or with disturbance of consciousness, or don’t cooperate or accept the mask treatment.
2. Not apply to children, or physical, sensory, intellectual can not be used safely and without the aid or user under guardianship.

Parameters of BIPAP Machinery
Model
BY-Dreamy -B18
Display
128×64 LCD
Mode
CPAP, S/T
Functions and features

Pressure
4-20CMH2O
Belex (1-3level)
2-4cmH2O
Ramp Duration
0-60min
IPAP
4-20cmH2O
EPAP
4-20cmH2O
Respiration Rate
4~40BPM
Inspiration Time
0.5~3.0s
Inspiration Sensitivity
1~6 level
Expiration Sensitivity 1~6 level
1~6 level
Automatic Leakage Compensation
Yes
Automatic Altitude Adjustable
Yes
Automatic ON/OFF
Yes
Adjustable Constant Temperature Humidification System
Yes
Replaceable Water Chamber
Yes
USB Download to PC
Yes
Sound Pressure Level(10cmH2O)
<30dBA
Input Volt.&Freq.
110-240Vac,50/60Hz
Net Weight & Size
1.8kg, 255×170×112mm(Host+Humidifier)


BIPAPA
Apply Crowd:
1. Moderate OSAHS patients
2. Chronic obstructive pneumonia
3. Respiratory failure

Taboo:
1. Repeated epistaxis
2. Coma
3. Hemodynamic instability
4. Pneumothorax
5. Pulmonary bulla
6. Cerebrospinal rhinorrhea

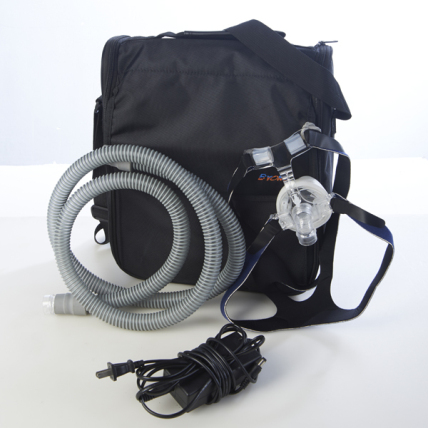

Product Accessories
Full Face Mask, Headgear, Tube, Filter, Power Adapter, User Manual & Travelling Bag
