Description

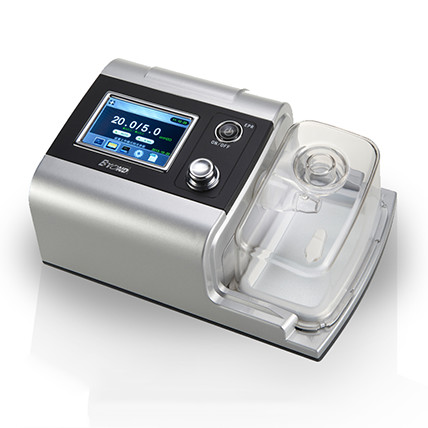

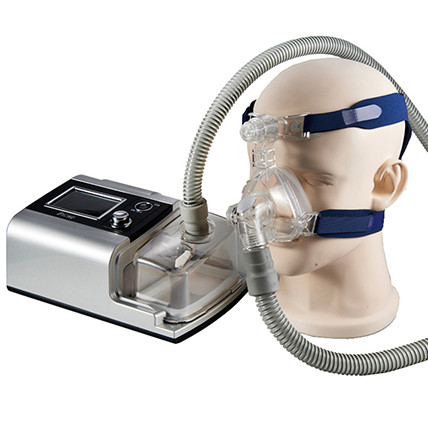

BY-Dreamy-B19 BPAP machine is suitable for clinical and home treatment of sleep apnea-hypopnea syndrome (OSAHS) and respiratory failure diseases. It consists of hots, breathing tube, mask, filter sponge, power cable and power adapter. Bilevel positive airway pressure machine is used for the person who have sleep apnea, without or little spontaneous breathing.

Features

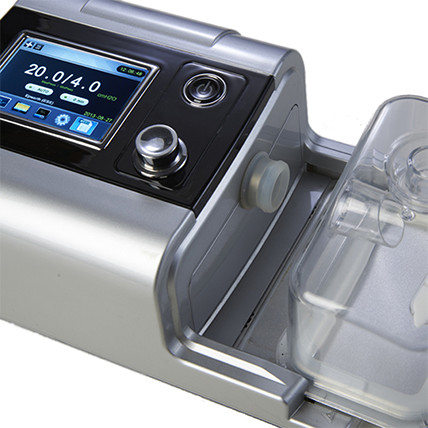

1. 3.5”TFT LCD display with easy operation.
2. Interactive operation interface is available. Back-lighting function allow night operation.
3. Fashionable design with fine piano lacquer, convenient for wipe.
4. Respiratory waveform & quality waveform display can achieve real time monitoring of CPAP
5. Ultra silent design & Delay time step up design.
6. The portable machine adopts imported movement technology, capable of constant heating.
7. Bipap machine is working to achieve human-computer synchronization.

Note of Bilevel Positive Airway Pressure Machine
1. Not available in bullous lung disease, pneumothorax, severe lack of effective circulating blood volume with shock, coma or with disturbance of consciousness, or don’t cooperate or accept the mask treatment.
2. Not apply to children, or physical, sensory, intellectual can not be used safely and without the aid or user under guardianship.

Parameters of BPAP Machine

Model	BY-Dreamy -B19
Display	3.5’’TFT LCD
Mode	CPAP, S, T, S/T
Functions and features
Pressure	4-25CMH2O
Belex (1-3 level)	2-4cmH2O
Ramp	0-60min
IPAP	4-25cmH2O
EPAP	4-25cmH2O
Respiration Rate	4~40BPM
Inspiration Time	0.5~3.0s
Inspiration Sensitivity	1~6 level
Expiration Sensitivity	1~6 level
Automatic Leakage Compensation	Yes
Automatic Altitude Adjustable	Yes
Automatic ON/OFF	Yes
Adjustable Constant Temperature Humidification System	Yes
Replaceable Water Chamber	Yes
USB Download to PC	Yes
Sound Pressure Level(10cmH2O)	<30dBA
Input Volt.&Freq.	110-240Vac,50/60Hz
Net Weight & Size	1.8kg,255×170×112mm (Host+Humidifier)

BIPAPA
Apply Crowd:
1. Moderate OSAHS patients
2. Chronic obstructive pneumonia
3. Respiratory failure

Taboo:
1. Repeated epistaxis
2. Coma
3. Hemodynamic instability
4. Pneumothorax
5. Pulmonary bulla
6. Cerebrospinal rhinorrhea

Product Accessories

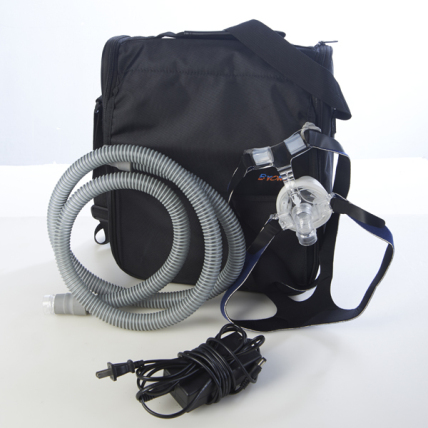

Full Face Mask, Headgear, Tube, Filter, Power Adapter, User Manual & Travelling Bag
