BYZ-810D

BYZ-810D
Description
BYZ-810D Single channel injection pump is one type injection pump, which is a "constant speed and constant volume" injection pump. It works through the microprocessor to control precision stepper motor, using mechanical transmission device for generating translational thrust, finally pushing the syringe stem injection.
The injection pump set various sensors, which can accurately control the injection speed of disposable syringes and monitor the injection process. It’s also a high-precision smart syringe pump.

Application
1. The pump can be widely used in clinical subjects of conventional intravenous injection, anesthetic injection, inject anticoagulant and cancer chemotherapy patients.
2. It can apply to medical intensive care unit, neurology intensive care unit, etc.
3. This pump is not available for target controlled injection of narcotic drugs, insulin, does not apply to high-pressure injection, please choose the right products according to the specific needs of use.

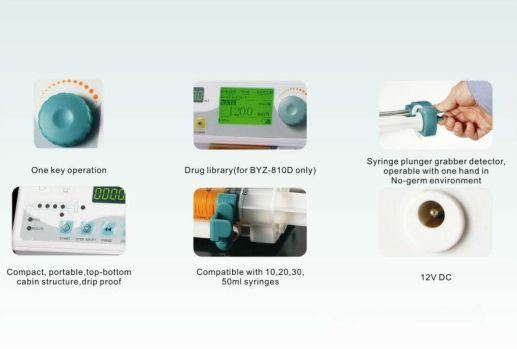

Features of Single Channel Injection Pump
1. Work mode: Rate mode, Time volume mode, Dosage weight mode are optional.
2. Human voice alarm systems: A real-time voice alarm systems make troubleshooting more timely, which greatly reduce the occurrence of medical fault.
3. With a powerful dose of drug reference data and more than ten automatic rate calculation formulas as well as the recommended dose, the machine has brought great convenience.
4. The infusion records storage function: it can query and record history infusion of about 2000 records, including medication records contain time, total fluid volume, total capacity and the name of the drug information.
5. Large LCD screen: The system uses high-definition display screen, achieving user-friendly operation.
6. The vein open function (KVO rate) can prevent back flow of blood.
7. Bolus can be quickly evacuated gas pipeline before starting the infusion, and increase the dose after starting.
8. Multi-drug combination: Single channel can be superimposed into a multi-channel free combination, can also be combined into a split-occupied 2-8 channel, resulting multi-drug combination forward.
9. Precision drive system ensures the accuracy of injections and improves transfusion safety.
10. Universal syringe: Built-in variety of syringe brands and supports automatic use, guaranteeing accuracy of all brands injection syringes.

Specification of Single Channel Injection Pump
Unique Human Voice Alarm system
The device triggered the human voice prompt and stop injection automatically when there is any malfunction, making the infusion process safer and more reliable.
Rate
50/60ml Syringe: 0.1ml/h ~ 999.9ml/h (0.1ml/h step)
1,000ml/h ~ 1,500ml/h (1ml/h step)
30ml Syringe: 0.1ml/h ~ 900.0ml/h (0.1ml/h step)
20ml Syringe: 0.1ml/h ~ 600.0ml/h (0.1ml/h step)
10ml Syringe: 0.1ml/h ~ 300.0ml/h (0.1ml/h step)
Flow Rate Accuracy
Within ±3% (after correct calibration)
Mechanical precision
Within ±2%
Bolus Rate
50/60ml Syringe: 1,200ml/h
30 ml Syringe: 720ml/h
20 ml Syringe: 480ml/h
10 ml Syringe: 240ml/h
Purge Rate
50/60ml Syringe: 1,500ml/h
30ml Syringe: 900ml/h
20ml Syringe: 600ml/h
10ml Syringe: 300ml/h
Volume Limit
0.1ml ~ 9999.9ml(0.1ml step)
Total Injection
Volume
0.1ml ~ 9999.9ml (0.1ml step)
Occlusion of Syringe Pump
High: 800mmHg ±200mmHg (106.7kPa±26.7kPa)
Medium: 50/600mmHg ±100mmHg (66.7kPa±13.3kPa)
Low: 300mmHg ±100mmHg (40.7kPa±13.3kPa )
Alarms
Injection soon finish, end of injection,occlusion, improperly installation of syringe, wrong setting, low battery, syringe loose etc.
Power Source
AC 100V ~ 240V, 50/60Hz; Internal rechargeable Li battery, capacity≥1,600mAh, 4 hours internal battery backup
KVO rate
1ml/h
Fuse
F1AL/250/60V, 2pcs inside
Power Consumption
30VA
IP Classification
IPX4
Equipment Classification
Class II, internal power supply, Type CF
Operating Condition
Ambient temperature: +5℃~ +40℃
Relative humidity
20 ~ 90%
Transport & Storage Condition
Ambient temperature:-30℃~ +55℃
Relative humidity
≤95%
Dimension
280mm (L) ×210mm(W) ×130mm(H)
Weight
2.2kg (net weight)
